C-TG1

181.00 Retail price SKU: 78940545 Category:

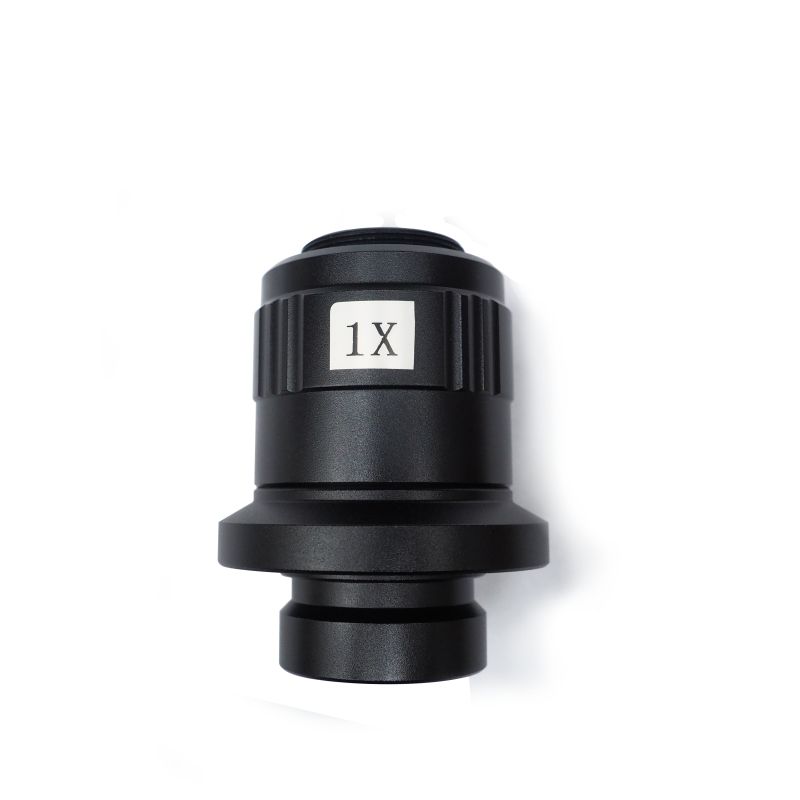

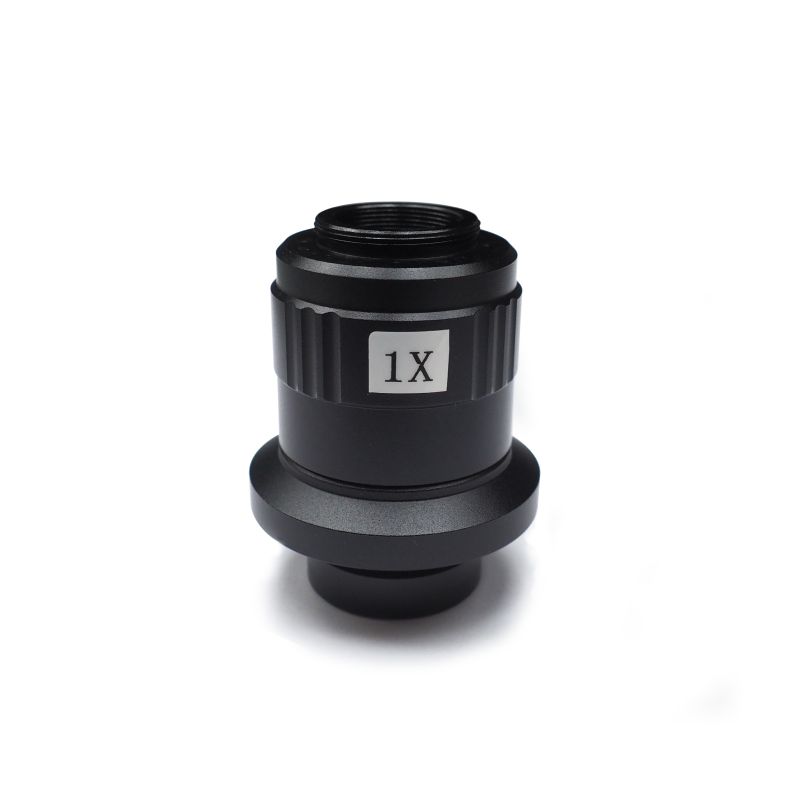

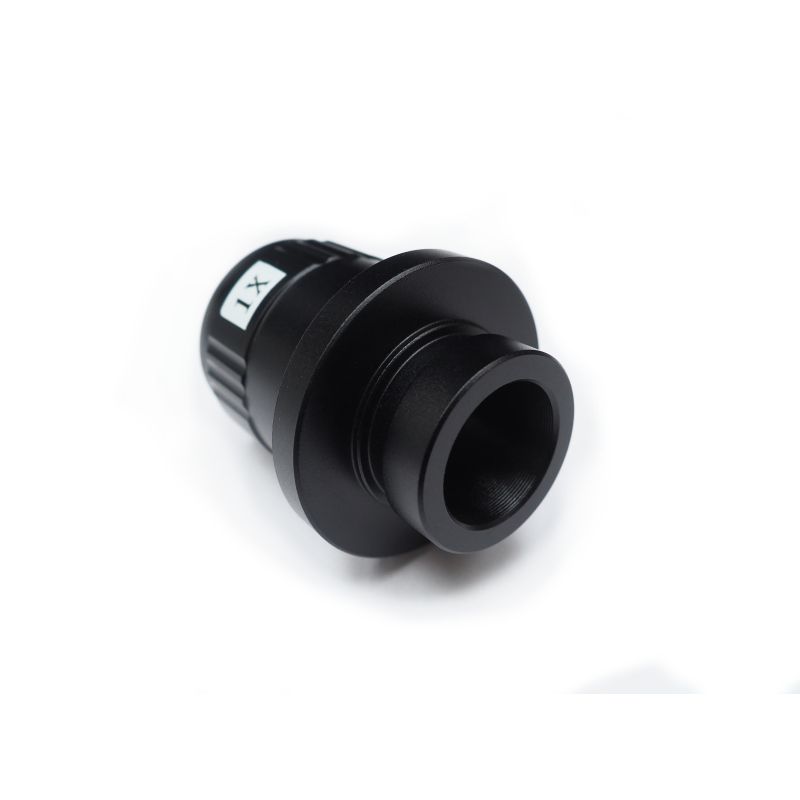

C-mount adapter 1X for XTG optics

The wide range of Gemset optical adapters allows to connect digital cameras and video cameras to different types of microscopes. They are the mechanical fittings that connect firmly the camera to the microscope.
This adapter provides a C-mount joint, which is a standard for many cameras. The other end is attached to the body optics photo tube that has a 30 mm external diameter. The lens is used to compensate the focal lengh according to the CCD sensor size.



Description

Technical specifications
photo tube diameter⌀ 30 mm
camera attachmentC-mount
matching CCD sensor1" (13.2x8.8 mm)
magnification lens1x
