The selection of a light source depends on the type of application. For a body surface observation it may require the direction of the light beam with particular angles. Instead for image capturing is recommended a coaxial light, possibly a ring light to avoid creating shadows on the object. For spectroscopes or refractometers, a strong source is required and for these GemSET selected the newest LED light.

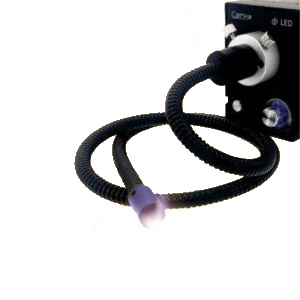

LED UV light source, constant current system, dimmable, high speed fan cooling system.
| Technical specifications | |
|---|---|
| Color light: | UV 365 nm |
| Dimming control | Continuous dimming/ 0-5V Analog control / PWM 20Hz 5V |
| Max. absorption: | 15W |
| Power supply | DC 24V 1.5A power adapter 96-240v / 50/60Hz |
| Handling weight | 840 g |
| Overall size (W x D x H) | 72 x 186 x 104 mm |
