Description
| Technical specifications | |
|---|---|
| Photo tube diameter | ⌀ 23 mm or ⌀ 30 mm by ring adpter |
| Camera attachment | threaded connection 28 mm |
| Matching CCD sensor | APS-C (23.6x15.7 mm) |
OFX-10

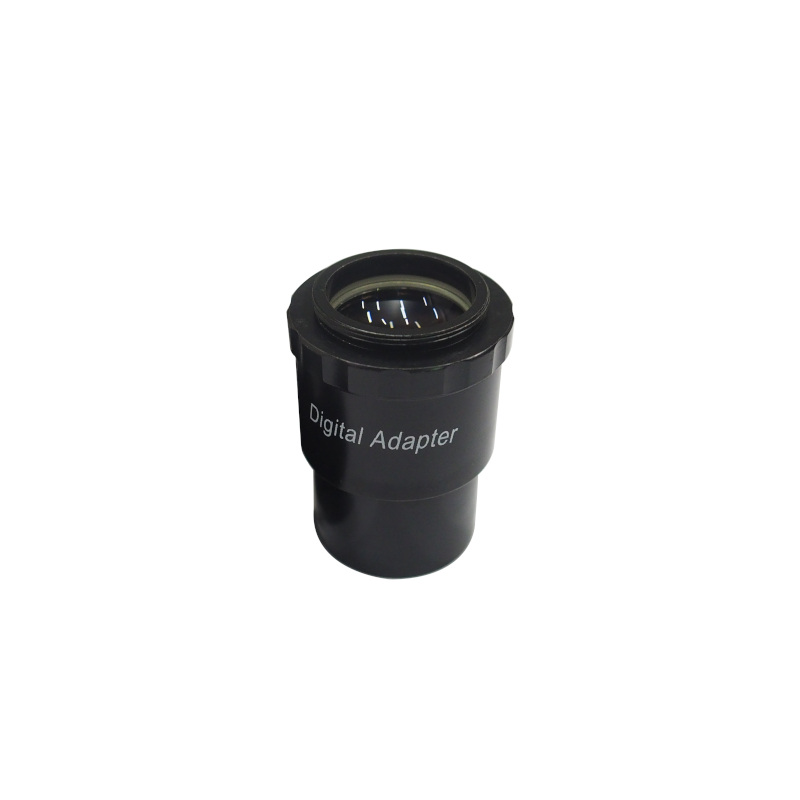

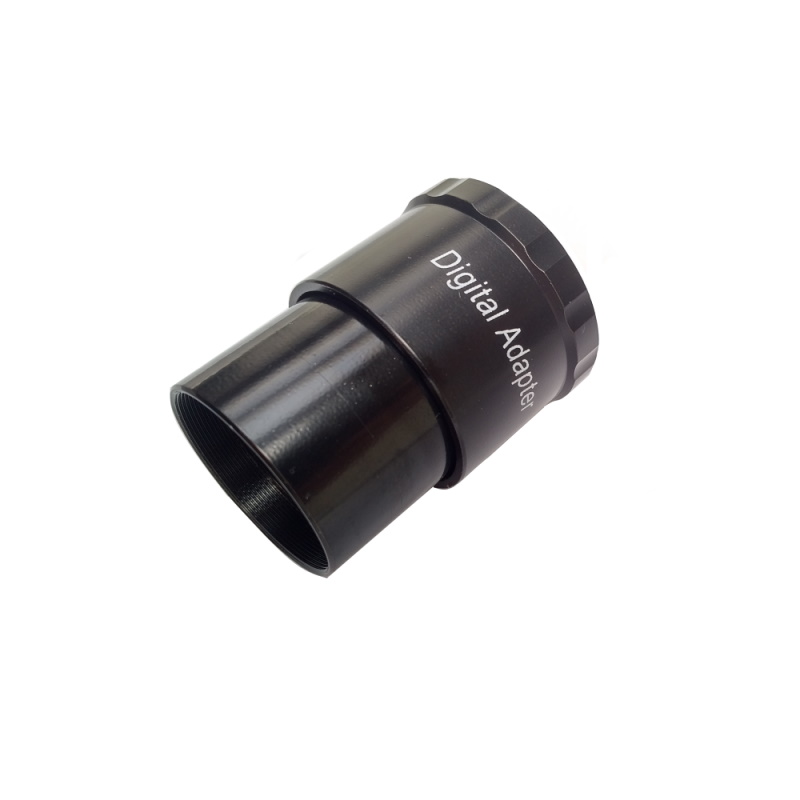

Photo adapter 28mm for eyepiece tube
This adapter is very important as it compensates the focal difference between human eye and cameras. It can be connected with a camera or similar digital devices, through specific connectors, thanks to its threaded end.

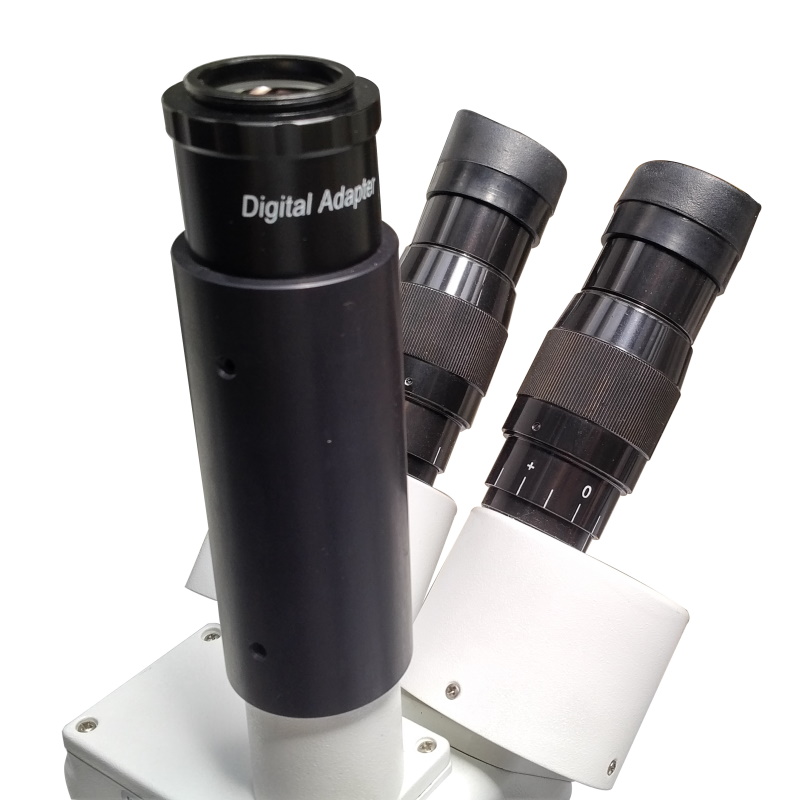

Designed to be used in place of one of the eyepiece tubes, therefore cylindrical with a diameter of 23 mm and, via an adapter ring (supplied), 30 mm.
The connection to the camera is a 28 mm threaded ring.
