SM-30

775.00 Retail price SKU: 78944003 Category:

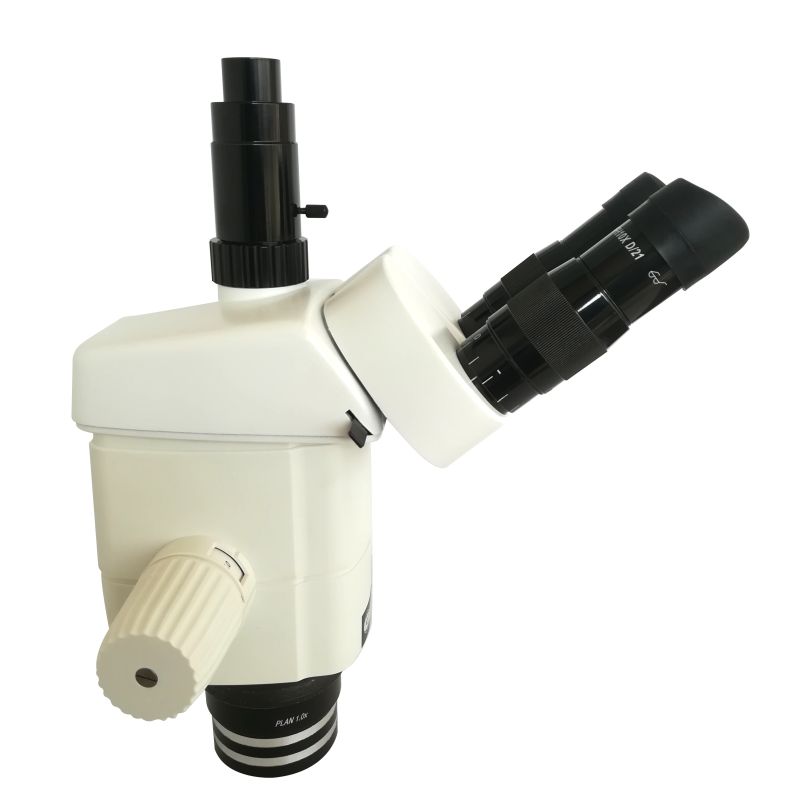

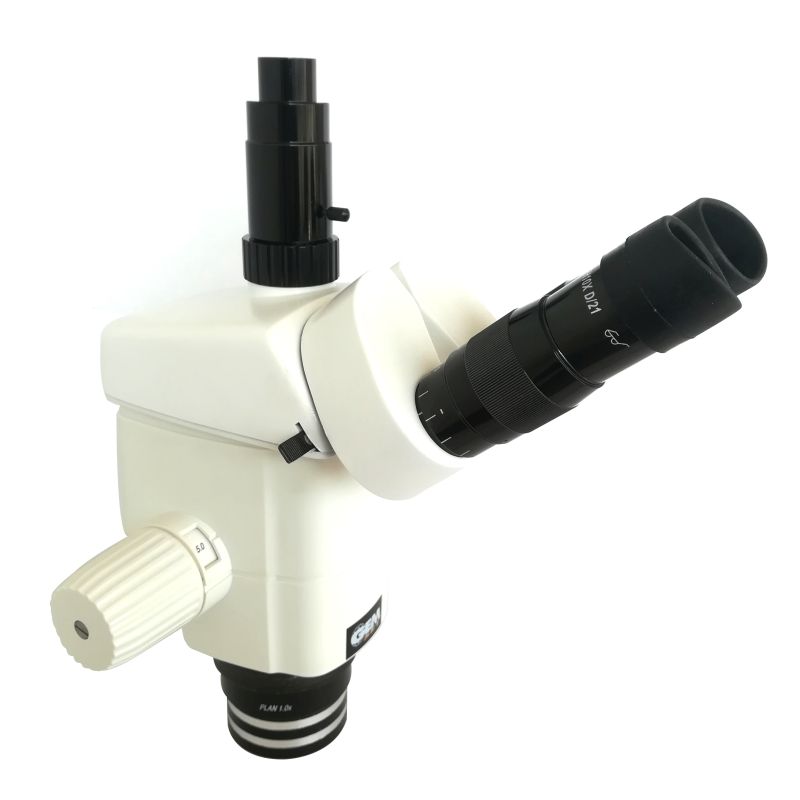

Trinocular optics

Modular construction for industrial environment, easy to disassemble to access internal optical system for cleaning operations. Two parallel beam paths and high quality optic system to grant a high resolution and distortion-free contrast image throughout the entire zoom range. The dioptric correction is available on both eyepieces, to allows i.e. to custom focusing. Interpupillary distance adjustment.

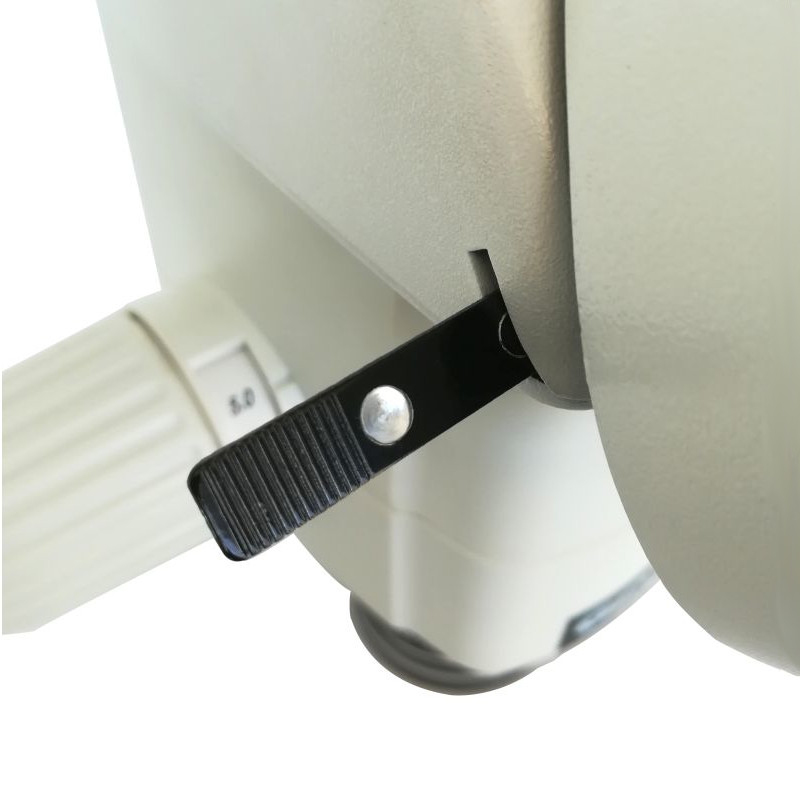

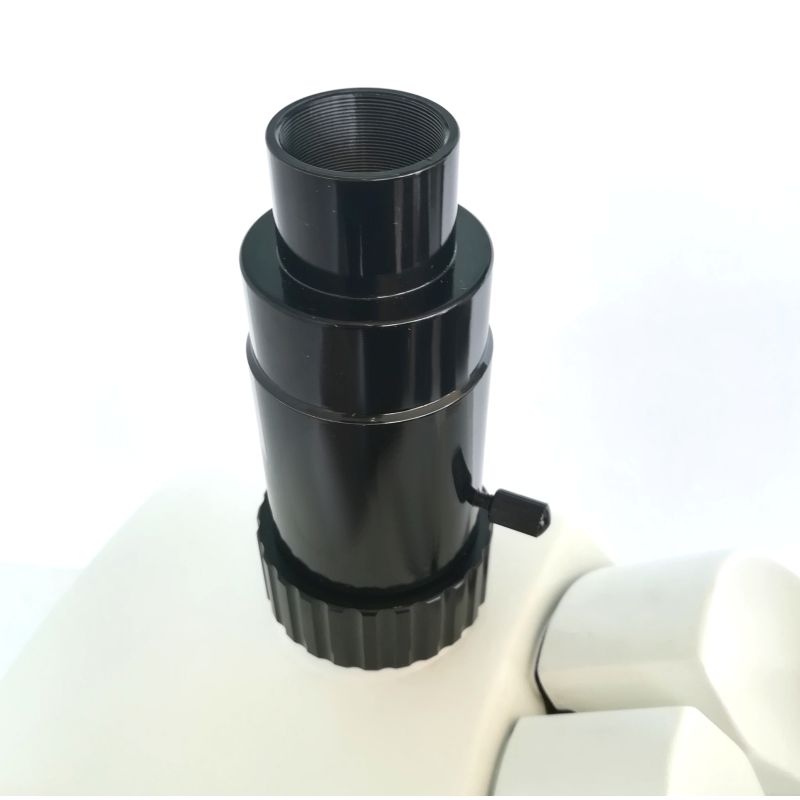

To operate through the photo tube a special extractable tab selector is provided to switch between the optical path of eyepiece or photo tube.

Standardly equipped with 1.0 X plan achromatic objective, but easily replaced by a wide range of plan achrmatic objectives both, to decrease (0.32x, 0.5x, 0.63x), or to increase (1.6x, 2.0x) the magnification.

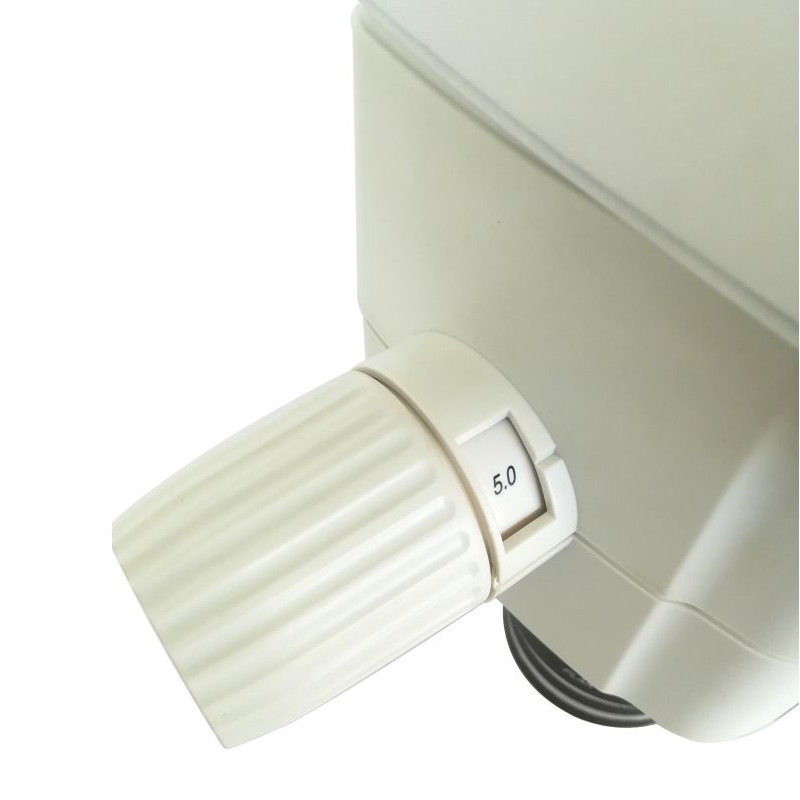

Shock-proof plastic housing with both sides knobs for zoom control (click sound notches adjustment from fine to coarse).

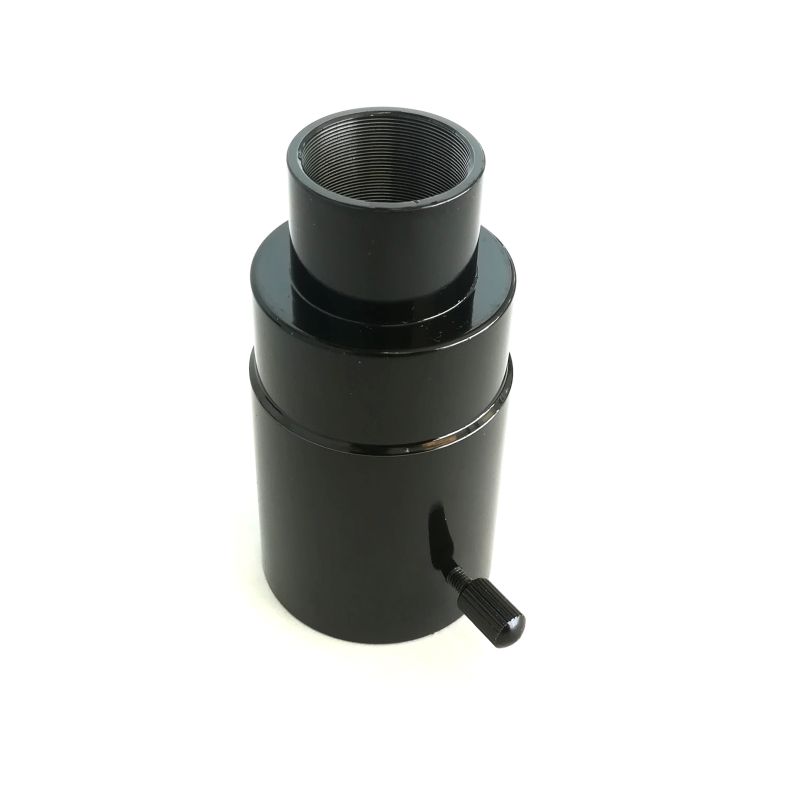

Its wide range of accessories such as auxiliary lenses for enlargement / reduction, camera adapters and eyepieces confirms the desire to offer a truly modular system.

Key features:

  • easy to disassemble for internal cleaning
  • two indipendent and parallel optical paths

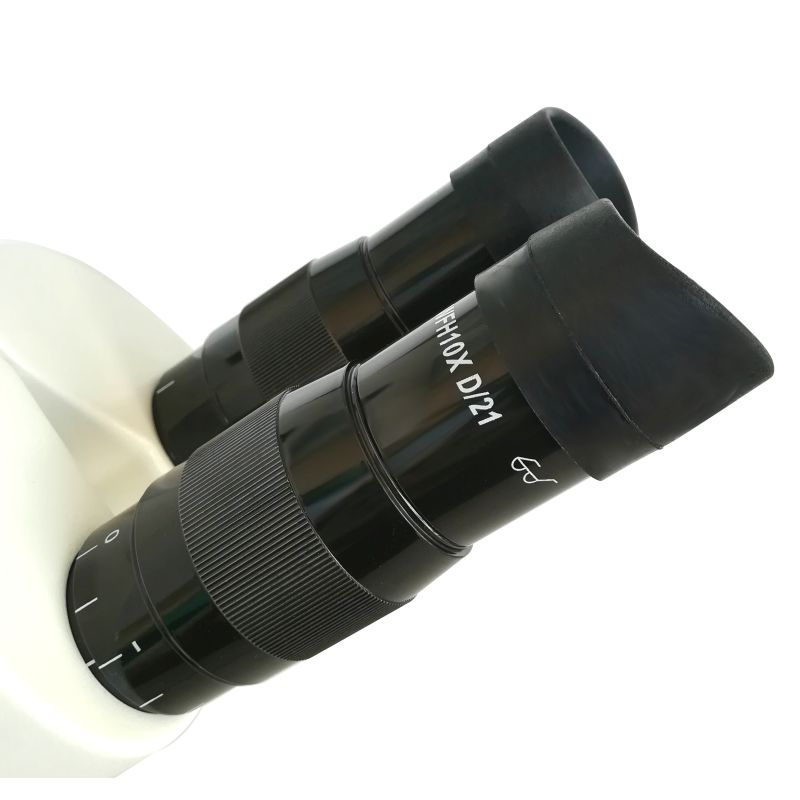

  • independent eyepiece focus adjustment
  • interpupillary distance adjustment
  • wide selection of accessories
  • extended range of magnification (with accessories: 1.9x-400x)
  • extended working distance (with accessories: 26mm-296mm)
  • extended field of view (with accessories: 106mm-0.6mm)
  • body full rotation 360°

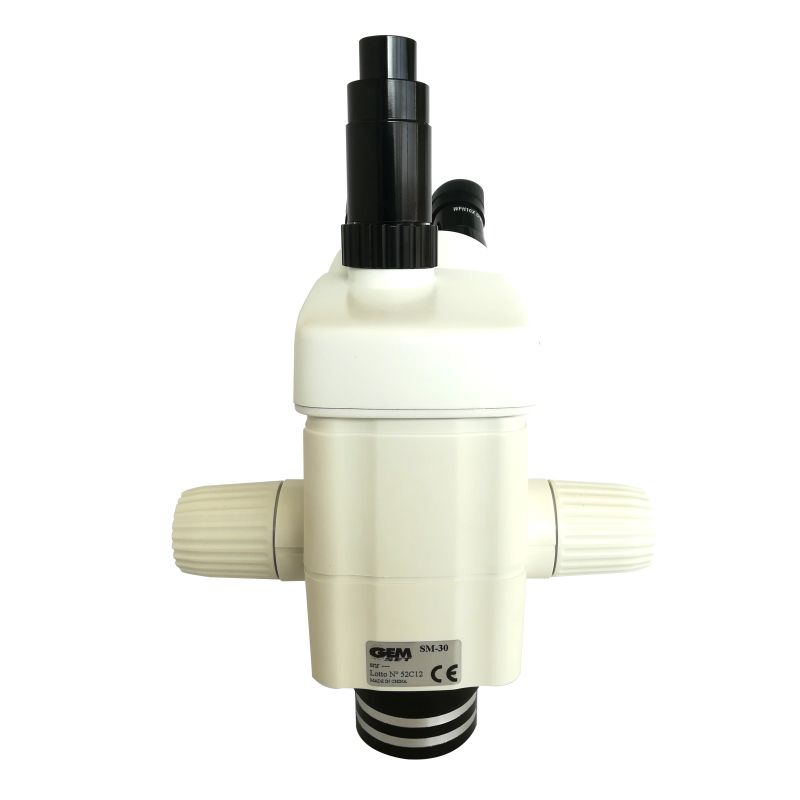

  • side mount zoom control system
  • eyepieces WF10x/22 included
  • can be used by glasses-wearing workers
