78.00 Retail price SKU: 78940120 Category:

Widefield eyepieces

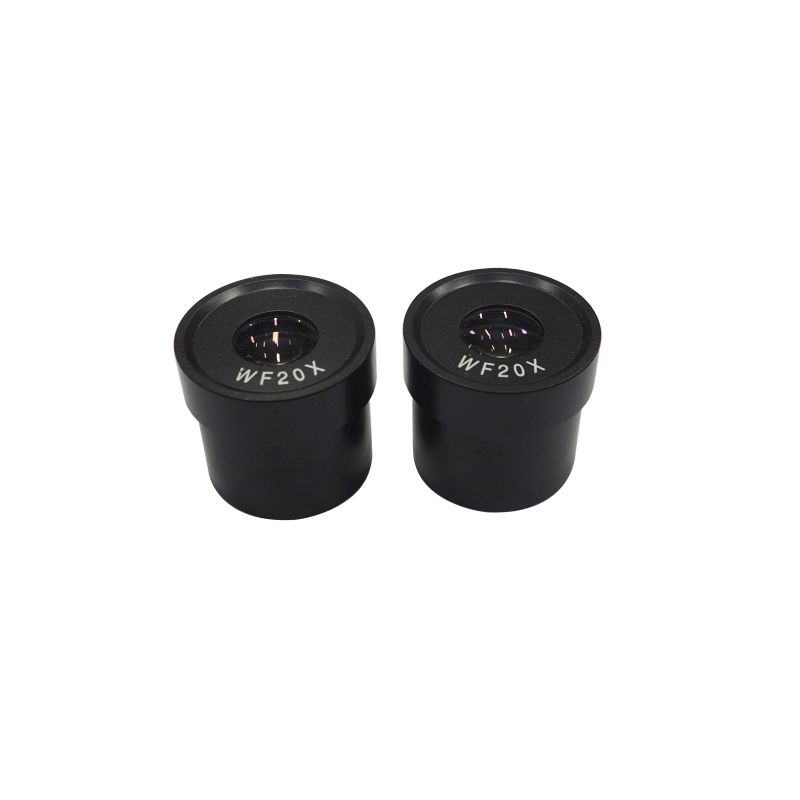

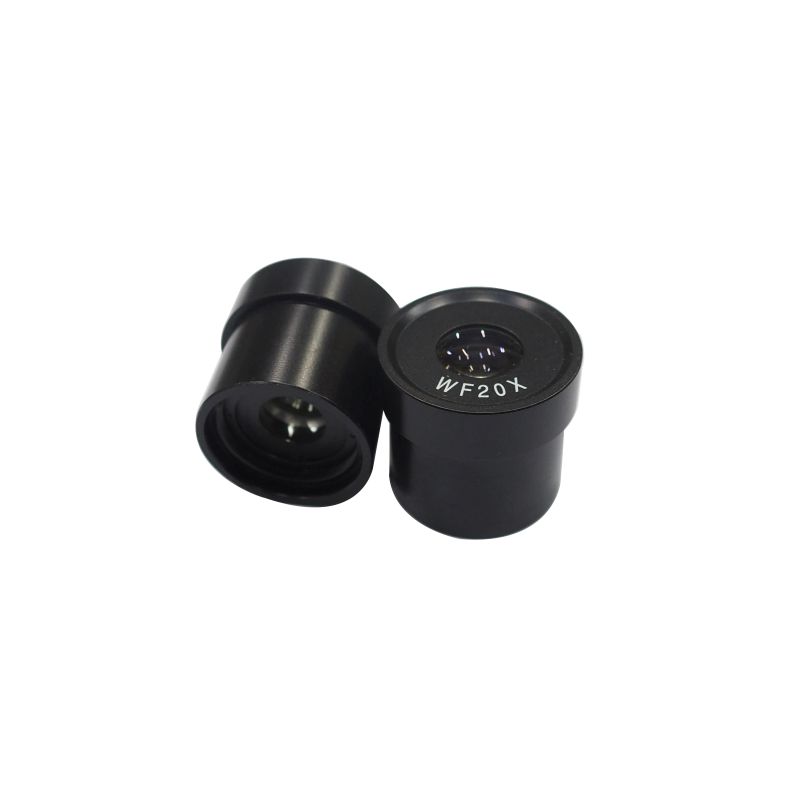

Pair of widefield eyepieces for XTS/XTD optic bodies. These widefield eyepieces have each a WF 20x magnification.

Eyepieces together with the objectives are the elements that directly contribute to microscope configuration. Eyepieces affect the magnifying factor but not the working distance. As the eyepiece is the element that comes in contact with the eyes, a clear vision together with dioptric adjustment become important to compensate low vision deseases.

When using optical bodies with video tubes, the magnification factor following to eyepieces selection doesn’t affect at all the result of image capturing system.

Technical features:
  • wide field
  • metal body
  • plug-in ⌀ 30 mm



Technical specifications
Field at 20x⌀ 11.5 mm
Field range⌀ 16.4 ÷ 2.6 mm (Objective lens 1x)
Plug-in diameter⌀ 30 mm
