OX-5

84.00 Retail price SKU: 78940105 Category:

Widefield eyepieces

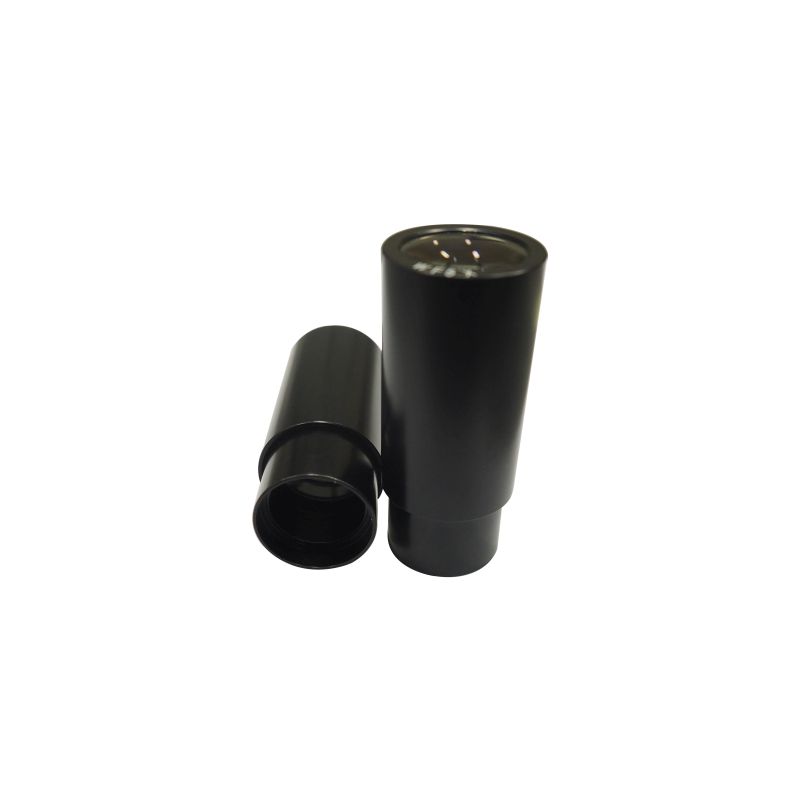

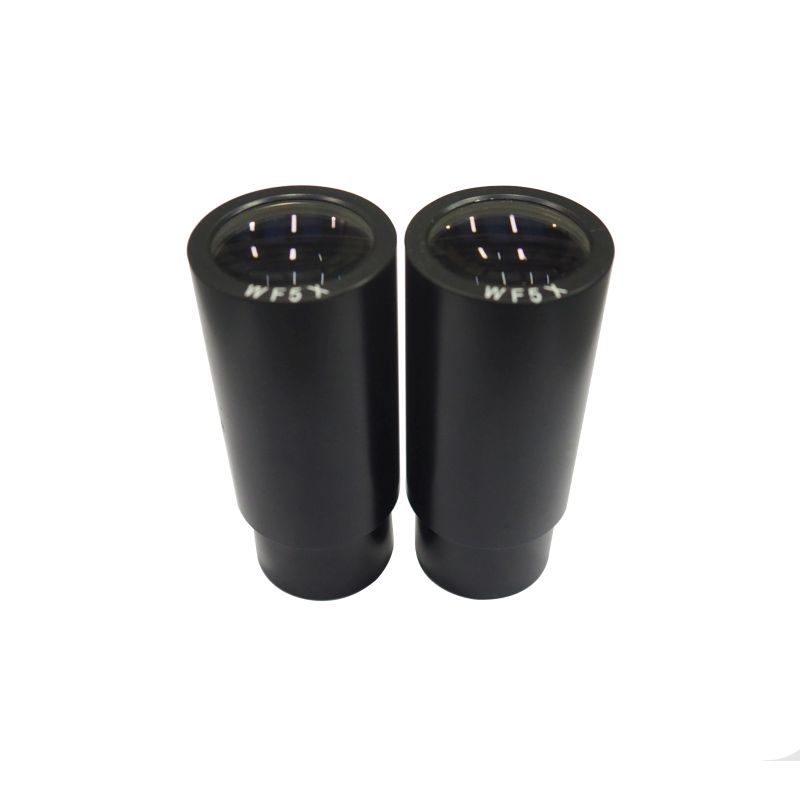

Pair of widefield eyepieces for XTS/XTD optic bodies. These widefield eyepieces have each a WF 5x magnification.

Eyepieces together with the objectives are the elements that directly contribute to microscope configuration. Eyepieces affect the magnifying factor but not the working distance. As the eyepiece is the element that comes in contact with the eyes, a clear vision together with dioptric adjustment become important to compensate low vision deseases.

When using optical bodies with video tubes, the magnification factor following to eyepieces selection doesn’t affect at all the result of image capturing system.

Technical features:
  • wide field
  • metal body
  • plug-in ⌀ 30 mm



Description

Technical specifications
Magnification5x
Field at 5x24 mm
Field range⌀ 34.3 ÷ 5.3 mm (Objective lens 1x)
Plug-in diameter⌀ 30 mm
