SM-20
Binocular optics

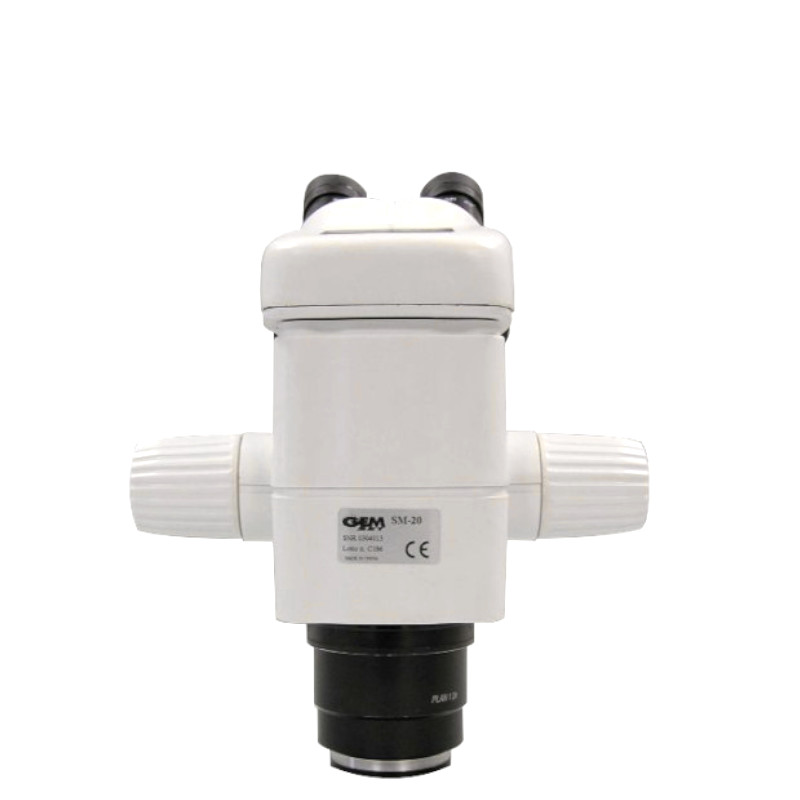

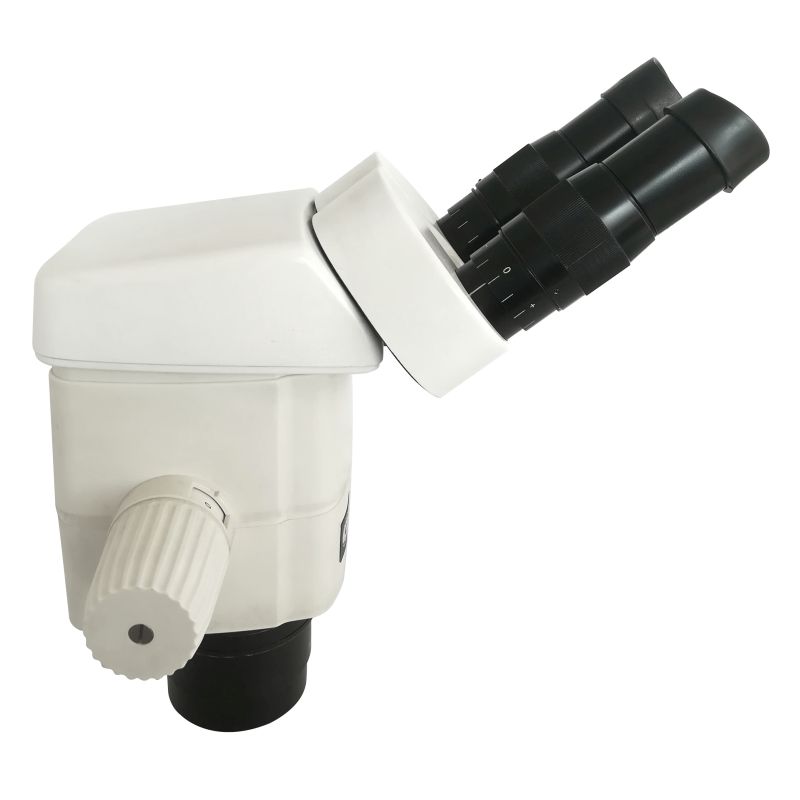

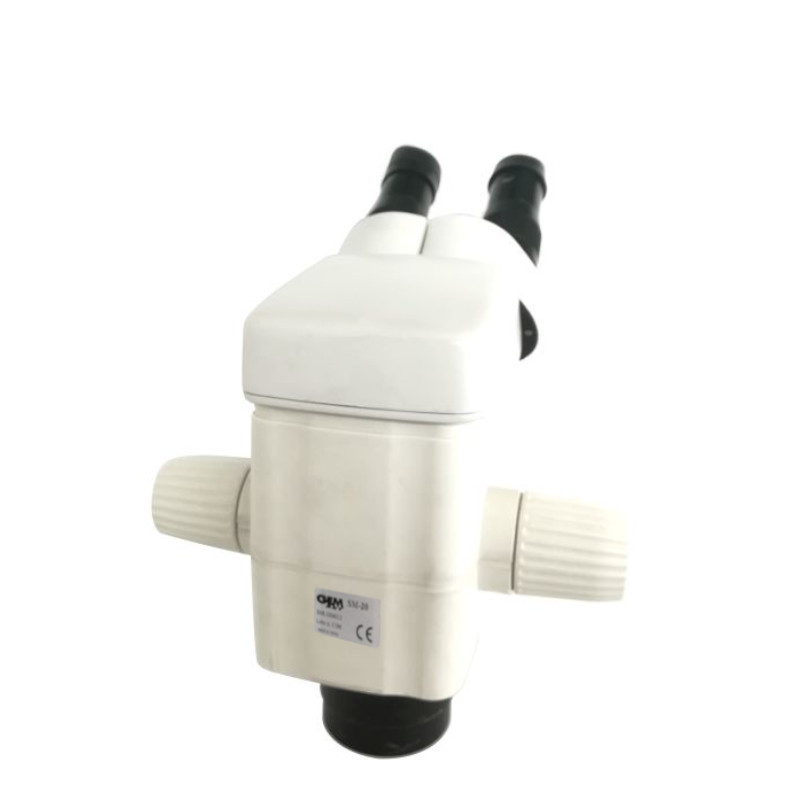

Modular construction for industrial environment, easy to disassemble to access internal optical system for cleaning operations. Two parallel beam paths and high quality optic system to grant a high resolution and distortion-free contrast image throughout the entire zoom range. The dioptric correction is available on both eyepieces, to allows i.e. to custom focusing. Interpupillary distance adjustment.
Standardly equipped with 1.0 X plan achromatic objective, but easily replaced by a wide range of plan achrmatic objectives both, to decrease (0.32x, 0.5x, 0.63x), or to increase (1.6x, 2.0x) the magnification.

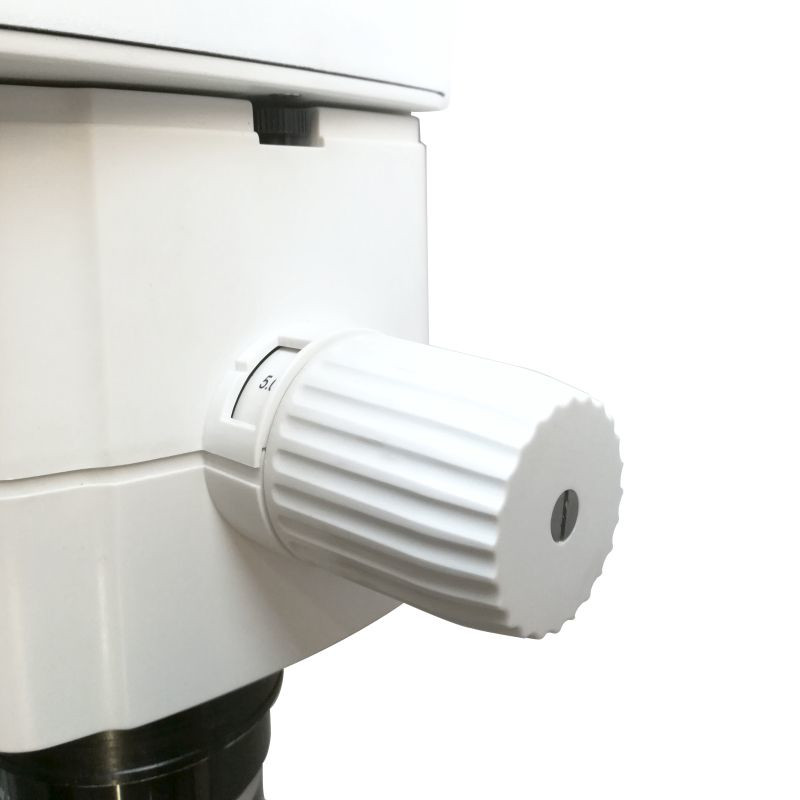

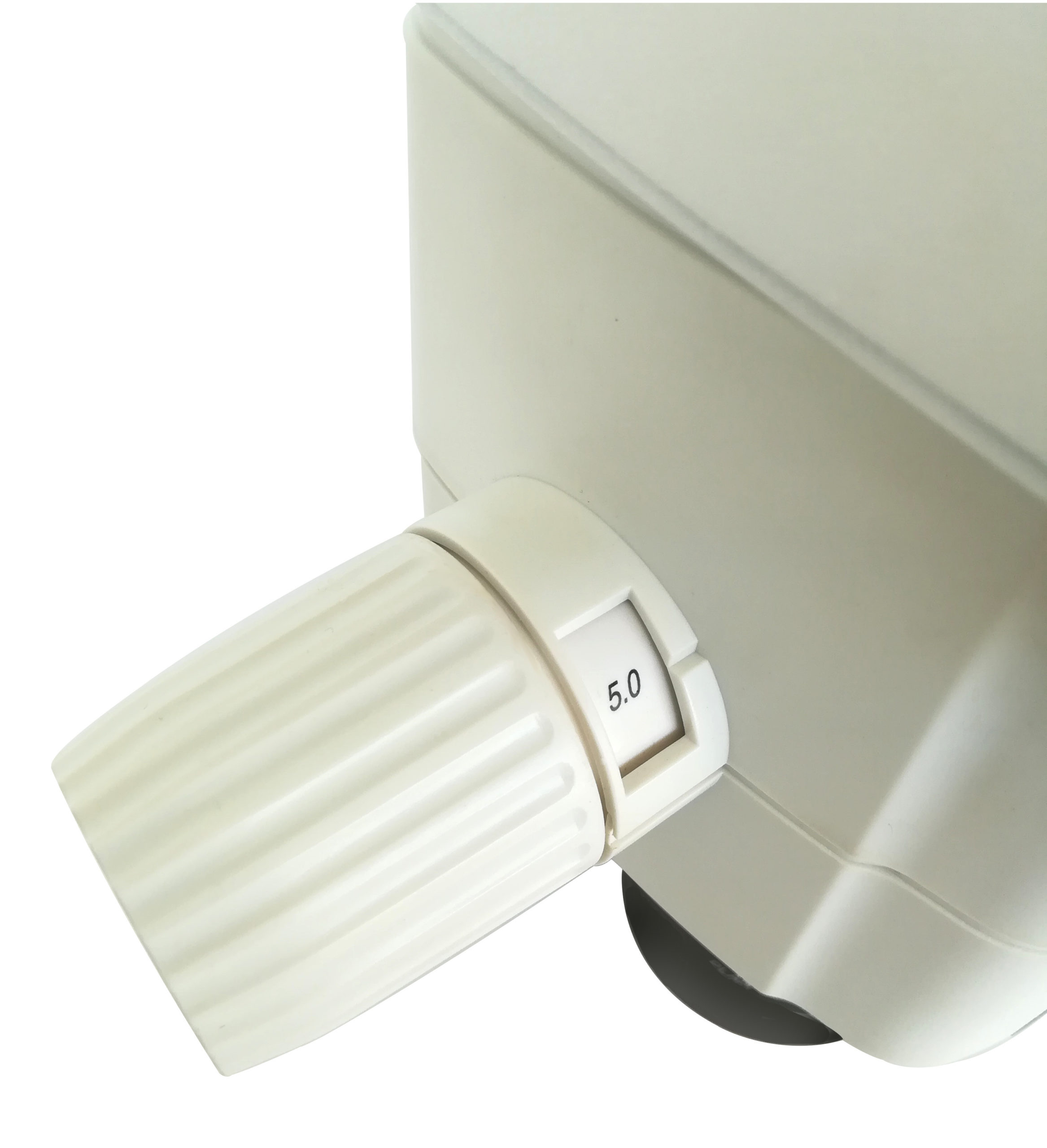

Shock-proof plastic housing with both sides knobs for zoom control (click sound notches adjustment from fine to coarse).
Its wide range of accessories such as auxiliary lenses for enlargement / reduction, camera adapters and eyepieces confirms the desire to offer a truly modular system.
Key features:
- easy to disassemble for internal cleaning
- two indipendent and parallel optical paths
- independent eyepiece focus adjustment
- interpupillary distance adjustment
- wide selection of accessories
- extended range of magnification (with accessories: 1.9x-400x)
- extended working distance (with accessories: 26mm-296mm)
- extended field of view (with accessories: 106mm-0.6mm)
- body full rotation 360°
- side mount zoom control system

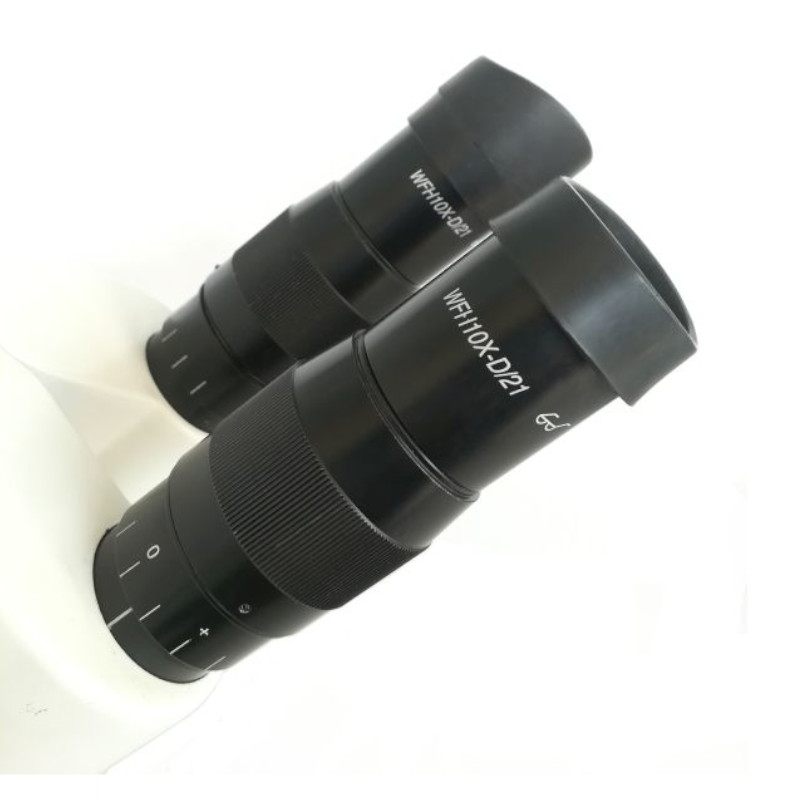

- eyepieces WF10x/22 included
- can be used by glasses-wearing workers
