OM-20

95.00 Retail price SKU: 78940220 Category:

Widefield eyepieces

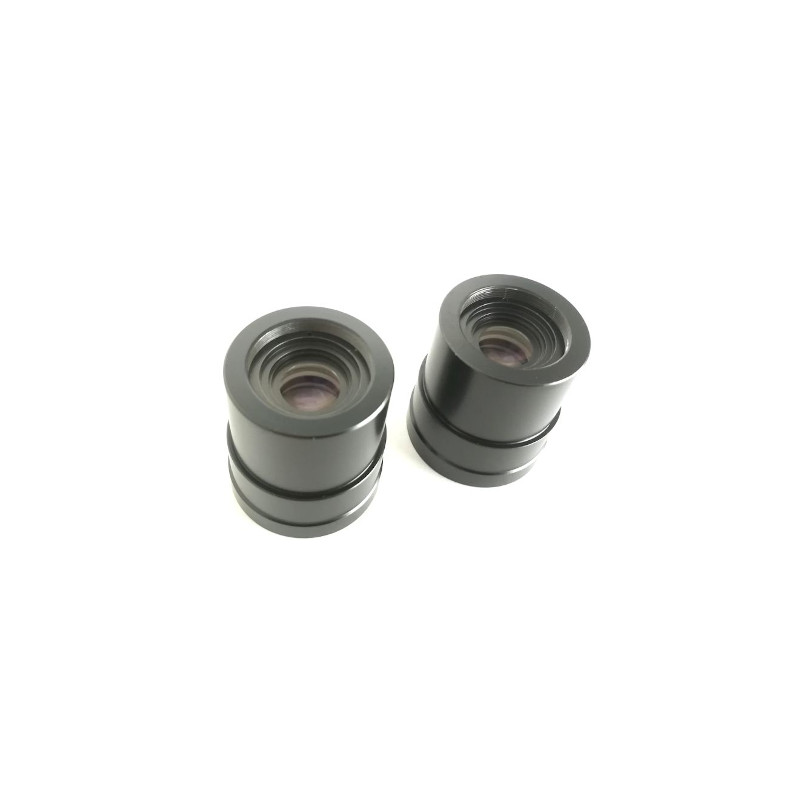

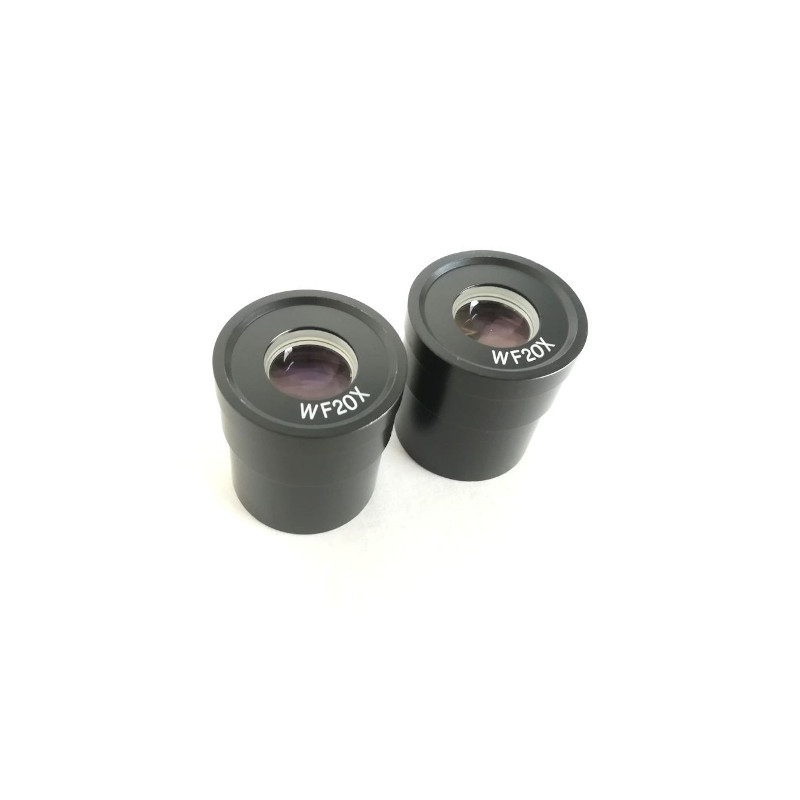

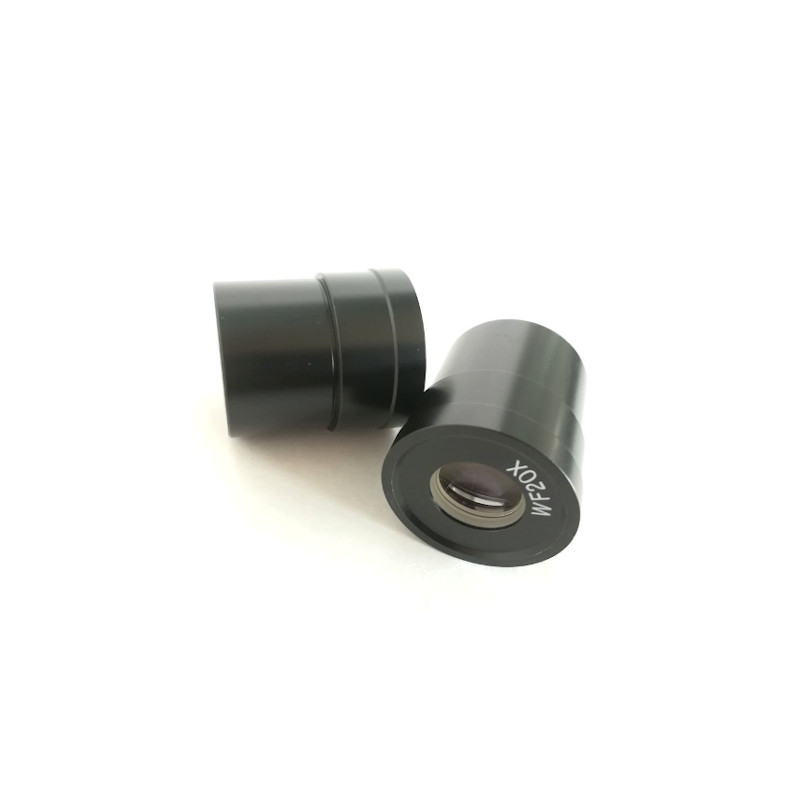

Pair of widefield eyepieces for SM optic bodies. These widefield eyepieces have each a wf20x magnification. Eyepieces together with the objectives are the elements that directly contribute to microscope configuration. Eyepieces affect the magnifying factor without altering the working distance. As the eyepiece is the element that comes in contact with the eyes, a clear vision together with dioptric adjustment become important to compensate low vision deseases.
When using optical bodies with video tubes, the magnification factor following to eyepieces selection doesn’t affect at all the result of image capturing system.

Technical features:
  • wide field
  • metal body
  • insertion ⌀30 mm

Description

Technical specifications
Field of view⌀ 11 mm (1.0 X objective)
Magnification20 X
Weight65 g
Product size (⌀ x L)32 x 36 mm
