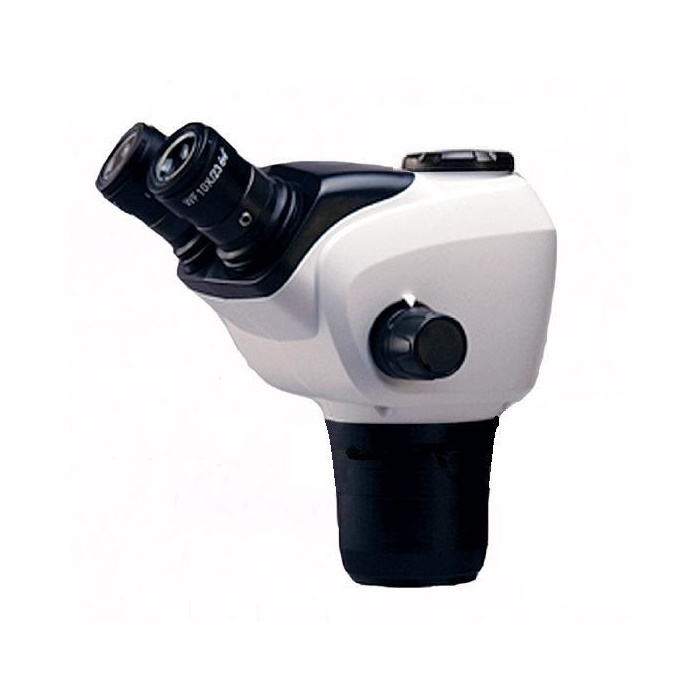

The best compromise between ergonomics and ruggedness. The 35° observing angle reduces fatigue when spending hours observing through the microscope. The eyepiece tube is inclined at 35 degrees, instead of the normal 45 degrees, this enables the user to make observations with a straight back, without having to bend over.
Shock-proof plastic housing with both sides knobs for zoom control featuring click-stops at notches intervals.
The high-eyepoint eyepieces feature a built-in diopter adjustment, which brings the image into focus simultaneously. The zoom ratio of 6.8 X provides high quality conditions when used for quality control, showing images with minimal curvature of field. Dioptric correction available on both eyepieces. Interpupillary distance adjustment.
To operate through the photo tube a special selector is provided to switch between the optical path of eyepiece or photo tube.
Wide range of accessories such as auxiliary lenses for enlargement / reduction, camera adapters and eyepieces.
- shock-proof plastic housing
- independent eyepiece focus adjustment
- interpupillary distance adjustment
- wide selection of accessories
- body full rotation 360°
- side mount zoom control system with click-stops
- eyepieces WF10x/23 included
- can be used by glasses-wearing workers
