458.00 Retail price SKU: 78942002 Category:

Binocular optics

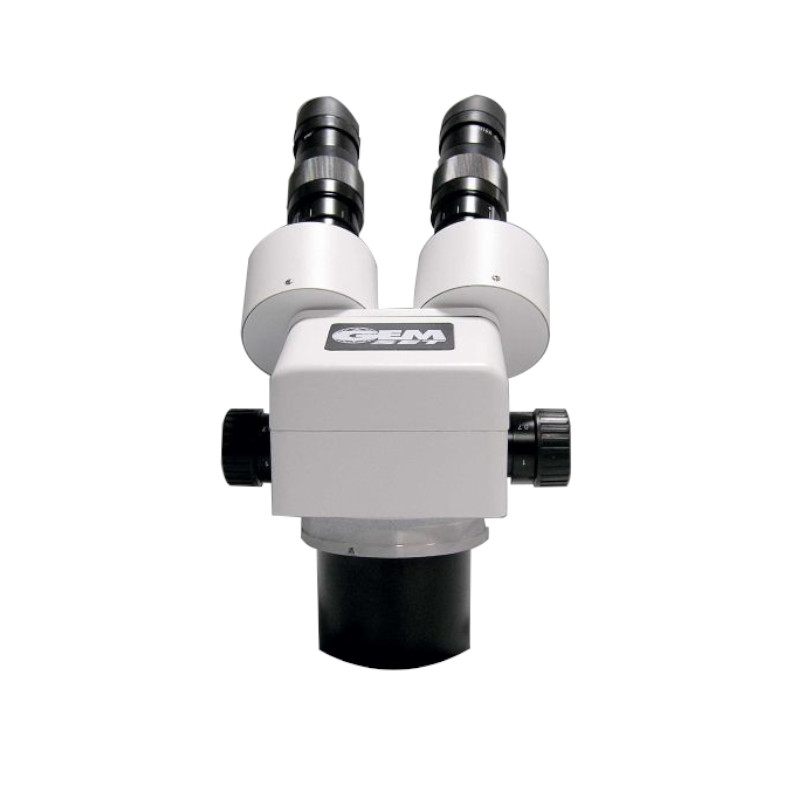

XTS series are specially intended for industrial applicatons thanks to a good compromise between a discrete field of view and a fairly high working distance.  Focused images remain clear through the whole zoom range. The dioptric correction is available on both eyepieces, to allows i.e. to custom focusing.

The body is a metal casting structure, assembled to grant high durability for industial premises and it fits appropriate for overhanging applications such as boom stands or flexible arm stands, besides the regular bench stands.

Its wide range of accessories such as auxiliary lenses for enlargement / reduction, camera adapters and eyepieces confirms the desire to offer a truly modular system.

Key points:
  • independent eyepiece focus adjustment
  • interpupillary distance adjustment
  • stereo-zoom from 7 to 45 x
  • body full rotation 360°
  • side mount zoom control system
  • eyepieces WF10x included
  • can be used by glasses-wearing workers


Technical specifications
Zoom ratio1 : 6.5
Zoom range0.7x.......4.5x
Photo tube external diameter⌀ 25 mm (only XTS-30)
Eyepieces tubes diameter⌀ 30 mm
Eyepieces10x / 22 mm
Field of view31.3 ÷ 5.1 mm (10x / 22mm eyepieces)
Combined magnification7x ÷ 45x (10x eyepieces)
Working distance108 mm (without auxiliary lenses)
Dioptric correction+5 / -5
Interpupillary distance55 - 75 mm
Coupling ring diameter⌀ 83 mm
Handling weight2.5 kg
