Description
| Technical specifications | |
|---|---|
| photo tube diameter | ⌀ 25 mm |
| camera attachment | DSLR (Digital Single Lens Reflex) |
| matching CCD sensor | 35mm (36x24 mm) |
| magnification ratio | 1x |
C-TRX

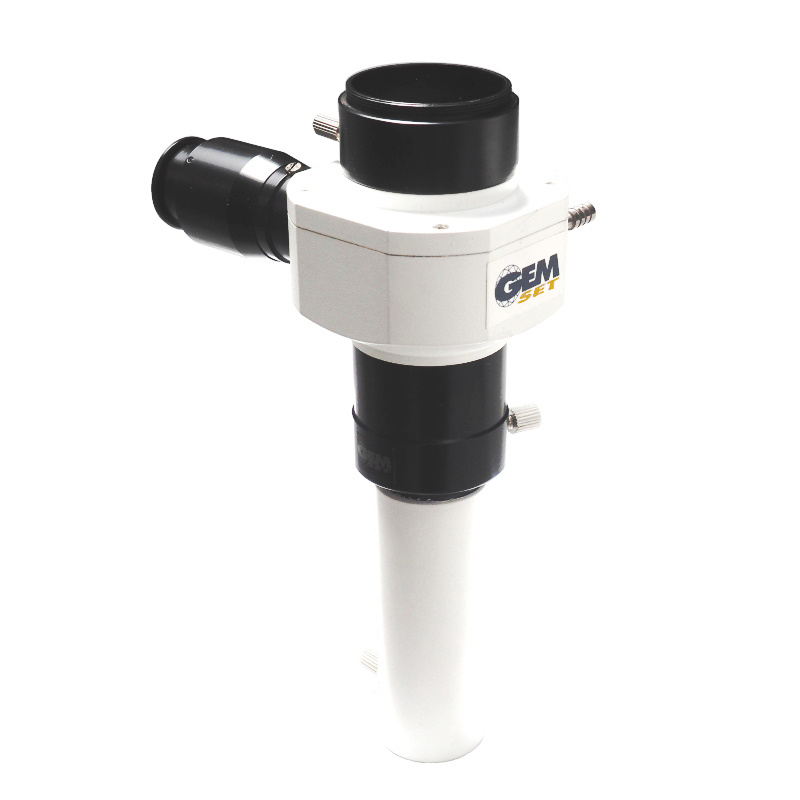

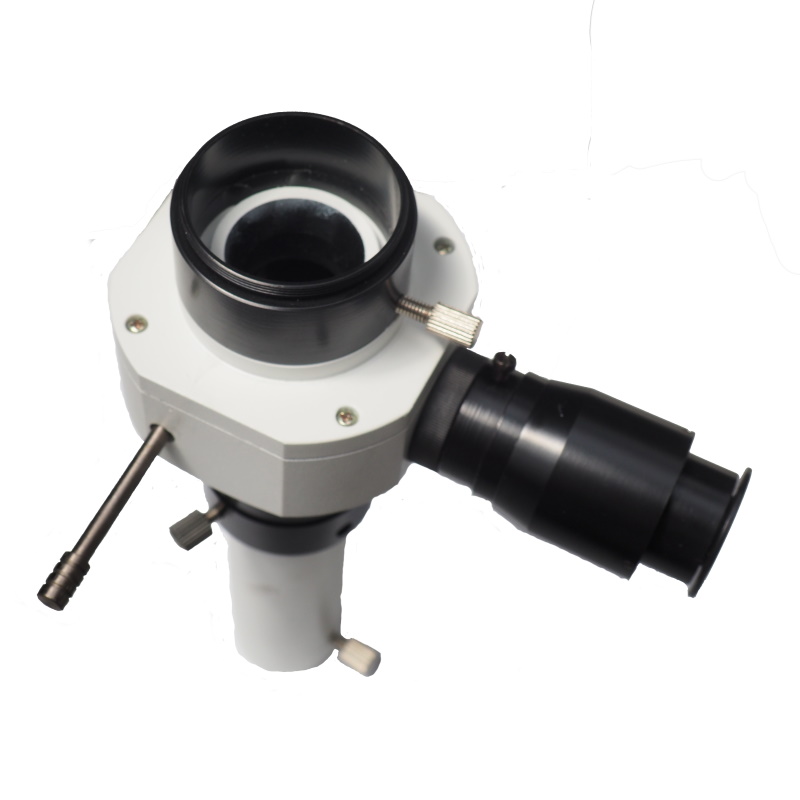

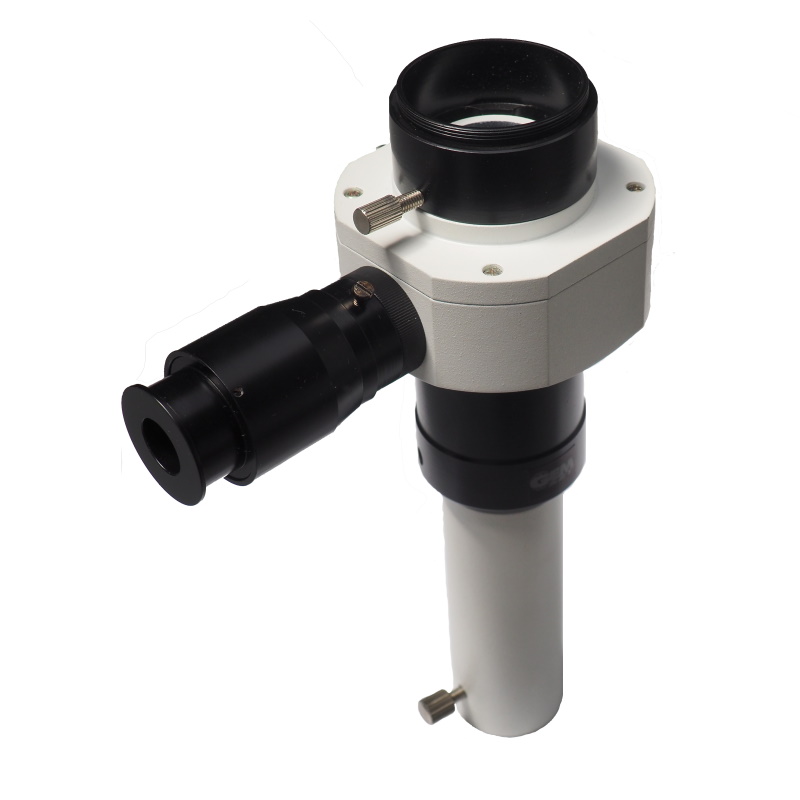

Video objective for DSLR 35 mm with side eyepiece
Optical adapter for connecting Reflex digital cameras to XTS / SM optic bodies photo tube. It is the mechanical fitting that connect firmly the camera to the microscope optic head. The side eyepiece allows to check the focus and the image centering whilst the camera is attached.
This adapter has a T2 threaded attachment on the camera side. The other end is for coupling to the photo tube of the optical body with an external diameter of 25 mm. The internal optical elements compensate the focal length for a full frame type sensor.
