Description
| Technical specifications | |
|---|---|
| photo tube diameter | ⌀ 30 mm |
| camera attachment | C-mount |
| matching CCD sensor | 1/2" (6.4×4.8 mm) |
| magnification lens | 0.7x |

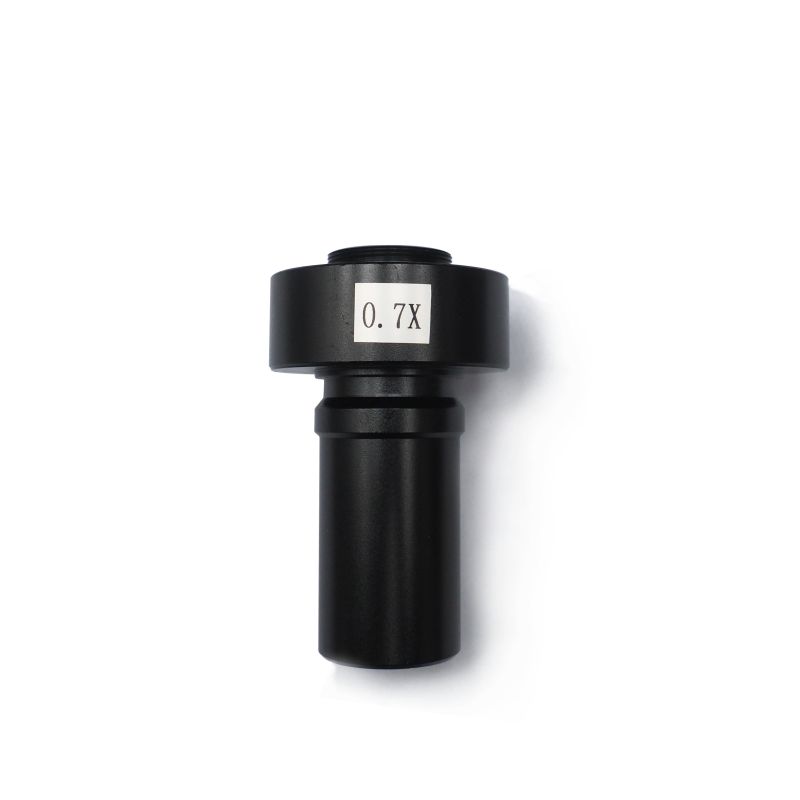

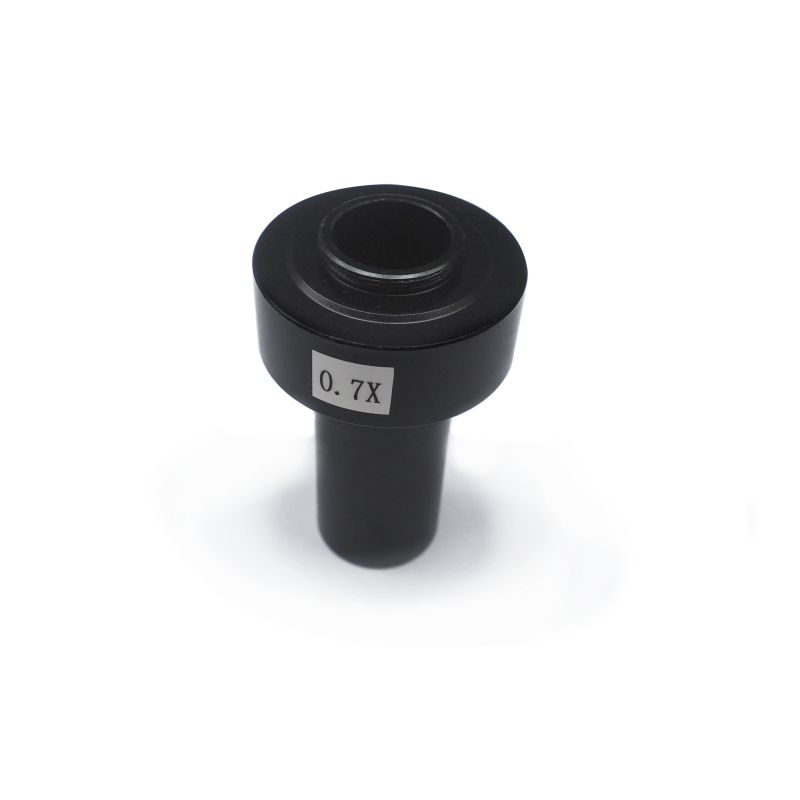

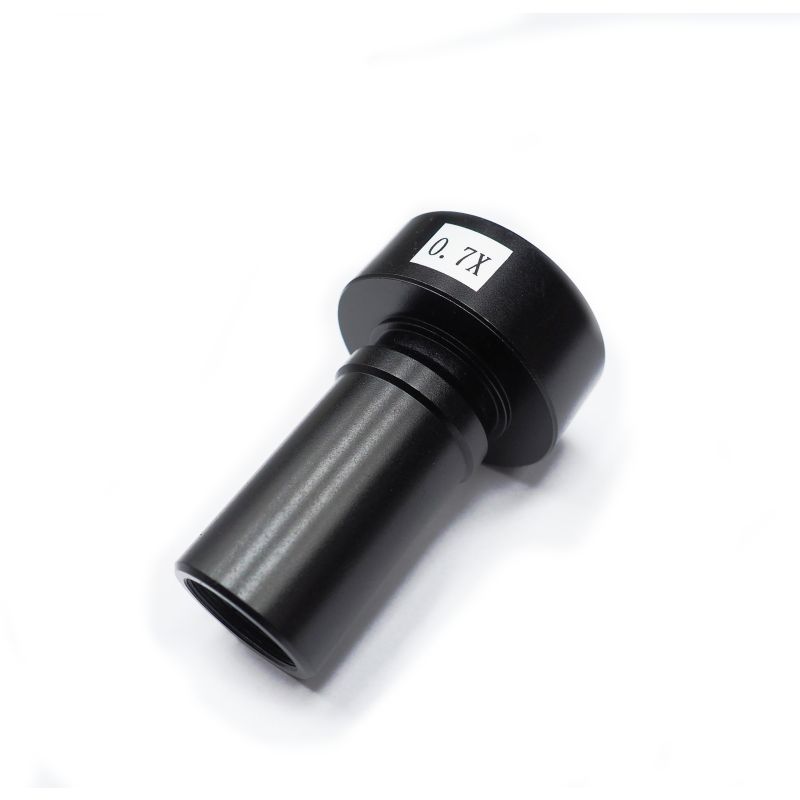

C-TG7
C-mount adapter 0.7X for XTG optics
The wide range of Gemset optical adapters allows to connect digital cameras and video cameras to different types of microscopes. They are the mechanical fittings that connect firmly the camera to the microscope.
This adapter provides a C-mount joint, which is a standard for many cameras. The other end is attached to the body optics photo tube that has a 30 mm external diameter. The lens is used to compensate the focal lengh according to the CCD sensor size.
